Making a Guessing Game in Flash CS4
This tutorial will explain how to create a guess game in Flash CS 4 with ActionScript 3.0. This tutorial can be applied using any version of Flash that supports CS4, CS5 and later versions.
You can preview the final result of this tutorial by clicking the link below and download the source of this tutorial at the end of this tutorial:
Step1

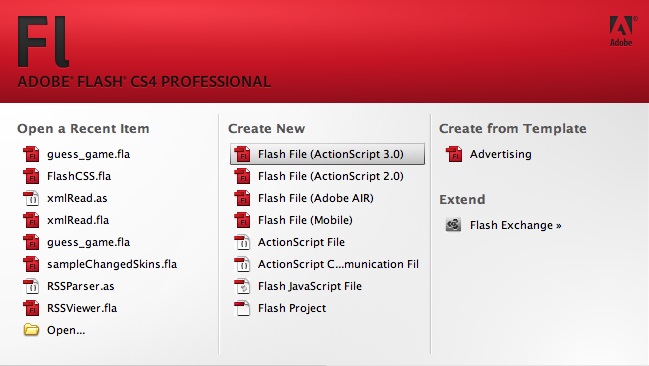

Open Flash CS 4, and pick an ActionScript 3.0 file.
Step2
Create the document size of 550 px (width) 210px (height).
Step3
Next create 3 layers called background, content, and actions.
Let us first make the background (make sure you are on the background layer), you will notice that I am currently on this layer:
Make the background for the flash movie #333333 this will turn the stage to a grey, which we will be using for the border. Next using the rounded rectangle tool and create a rectangle centered on the stage with 4 for the rounding value. Next pick a gradient fill of blue (or any color that you want). Next convert this background graphic to a movie clip (modify>convert to symbol, or right click and chose convert to simple), and call it background.
Step4
Next we will work on the design features of the guessing game (make sure you are on the content layer):
Now make sure you are on the content layer, using the text tool, pick an area on the stage (I picked the upper left section, but maybe you want the application to be centered) and type “Guess a Number between 1 and 10”.
I am using a font called Handwriting – Dakota (In the source files) And I am using a black fill. The font, and color makes no difference, it really just depend what you like.
Step5
Pick Static text in the dialog in flash. This test is static text it is just a title, and therefore it does not perform any actions.
Step6
Now using the text tool create a text field on the stage under the main heading that you just created.
Just move the cursor on the stage and drag an area, which will look like a box.
Step7
This is where the user will type in the number that they guess. Make sure that this text filed, is Input text, and has an instance name of “guess_txt”
The instance name is how we can communicate with actionscript (which will get to in a minute). Basically, you will add the instancename.{flash_function}
Step8

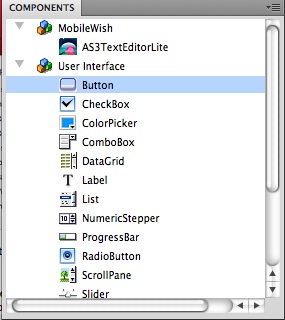

Now we will add the button, go to components panel and drag a button onto the stage under the input text box you just made.
Step9
Now position the button to line up with ht e two text fields on the stage.

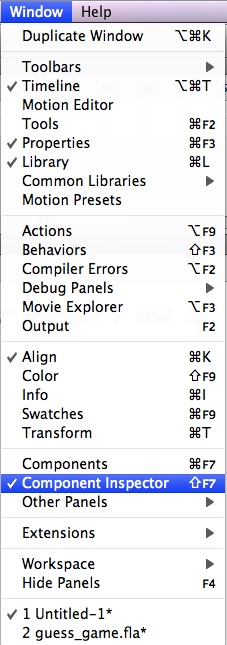

We will now use the components inspector, this can be found in Windows>Component Inspector.
We will be using this to change the name on the button, as it says label by default. We can also do this with actionscript, but we will save that for a later tutorial.
Step10
Change the Label to Guess
Step11
Give the button an instance name of guess_btn. By the way when you end your button in btn you can get extra hints in flash. Note: if you double click on the button you can modify the colors of the button stages. I used gradient fills.
Finally our last text filed for the message to the user, this is useful as you want to commutate to the user, either a error message, or to let them know they picked the right number.
Step12
Using the text tool again, create a large text filed under the button, and make sure it is set to dynamic text, and give it an instance name of response_text

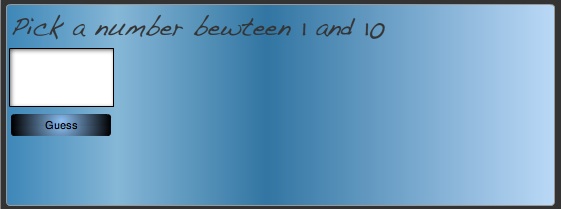

The design of the application is complete, and now we are ready to add the actionscript to make the game interactive!
Finally we will work on the actions, make sure you are on the actions layer:
Step13
Click on the actions layer, and highlight the first keyframe, right click and pick actions, this will open the actions panel so we can start coding.
Now we need a variable, in actionscript this is done by assigning a “var” which we will call correctNum, and then we will use a random number function, and then multiple that result by 10. This way will get a random number between 1 and 10, which is what we want.
var correctNum = Math.floor(Math.random()*10);
Check the flash documentation to learn more about math functions in flash
Step14
Now we will write the code for making the button react to the user. This is done with the addEventListener and since we want an action when the button is clicked we will use this function in this event.
Also, we need to use the instance name of the button with the “.” Dot notation. And finally there will be a function to tell flash what will happen when the button is clicked.
guess_btn.addEventListener(MouseEvent.CLICK, onGuessClick);
Now for the onGuessClick which is an event, which goes in the brackets. Now within this function we want to assign a variable for the guess and do some error checking too.
function onGuessClick(event) {
var guess = Number(guess_txt.text);
//this variable guess is a number, and you want to pass this into the text field, and using the instance name with a .text which allows you to display this text in this filed when the swf is compiled.
if (guess < 1 || guess > 10) {
response_txt.text = “I said between 1 and 10, dude!”;
// this checks to see if the number picked is between 1 and 10. I think that the less tan or greater than sign you are familiar with. The || means OR so this is saying less than 1 OR greater than 10.
} else if (guess == correctNum) {
response_txt.text = “You got it `-` It was ” + correctNum + “!”;
//this is saying that the user piked the right
} else if (guess < correctNum) {
response_txt.text = guess + ” is too low!”;
//if the number is wrong tell the user it was too low.
} else if (guess > correctNum) {
response_txt.text = guess + ” is too high!”;
//if the number is wrong tell the user it was too high.
}
}

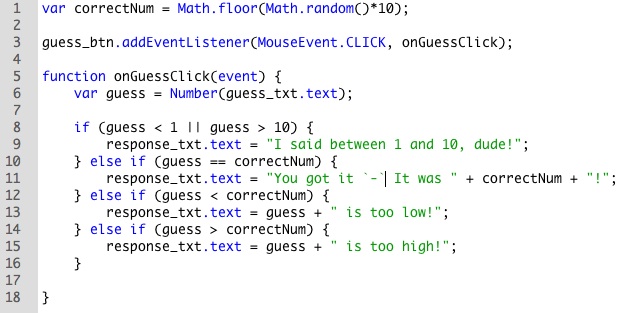

Now the complete code
If you want to change the game, just change the “10” to you number. Let’s say you wanted 25, then change these two lines to:
var correctNum = Math.floor(Math.random()*25);
and
if (guess < 1 || guess > 25) {
response_txt.text = “I said between 1 and 25, dude!”;
You can download the complete code, along with the font I picked in case you don’t have it.
This is part one of this tutorial, the next time I will explain how to improve on this, as it does not check to see if the user picks a letter, such as cat, and it does not check to see if the user picks nothing.
I also added some design features to my swf. Basically just a movie clip for the background with a gradient fill and a drop shadow.
If you have any comments or questions, please leave a comment!
Next time I will explain ho to make a Quiz Application. Happy Flashing!
